We are pleased to announce the successful completion and commissioning of another advanced renewable energy project for our customer at Triplicane, Chennai.

This installation combines high-efficiency TOPCon solar modules, a 3-phase hybrid inverter and high-voltage LFP battery storage, providing the customer with an integrated solution for solar generation, energy storage, backup power and improved energy management.

Project Configuration

Solar PV Capacity: 12.5 kWp
Hybrid Inverter: 10 kW, 3-Phase
Battery Storage: 12 kWh High-Voltage LFP
Location: Triplicane, Chennai, Tamil Nadu

Major Components Installed

1. Axitec 625 Wp TOPCon Non-DCR Modules – 20 Nos
   High-efficiency TOPCon modules selected to maximize solar generation from the available rooftop area.
2. Solaryaan 10 kW 3-Phase Hybrid Inverter
   Integrated for efficient management of solar generation, battery charging/discharging and grid interaction.
3. Solaryaan 12 kWh HV LFP Battery
   High-voltage Lithium Iron Phosphate battery storage designed to provide dependable energy storage and backup capability.

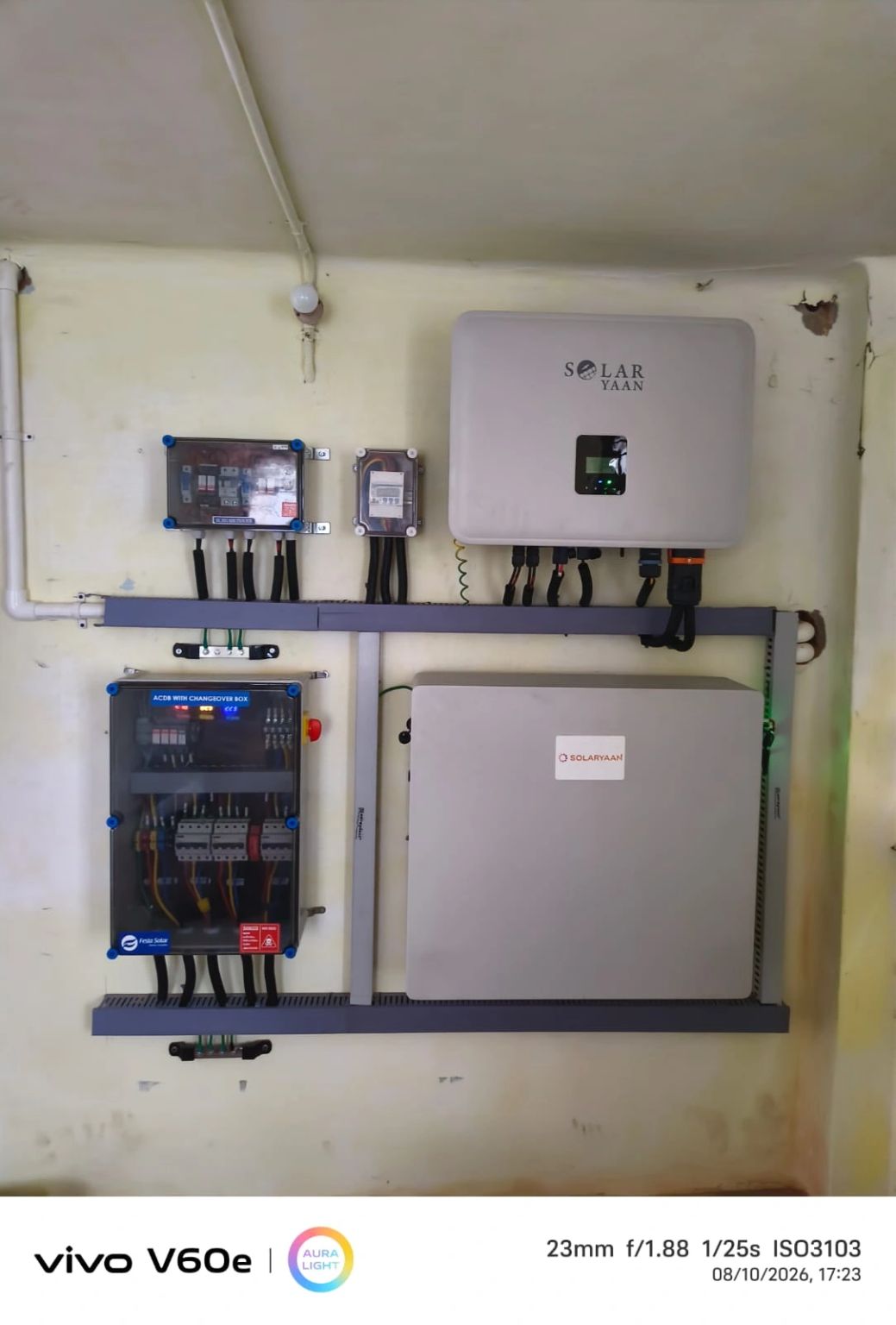

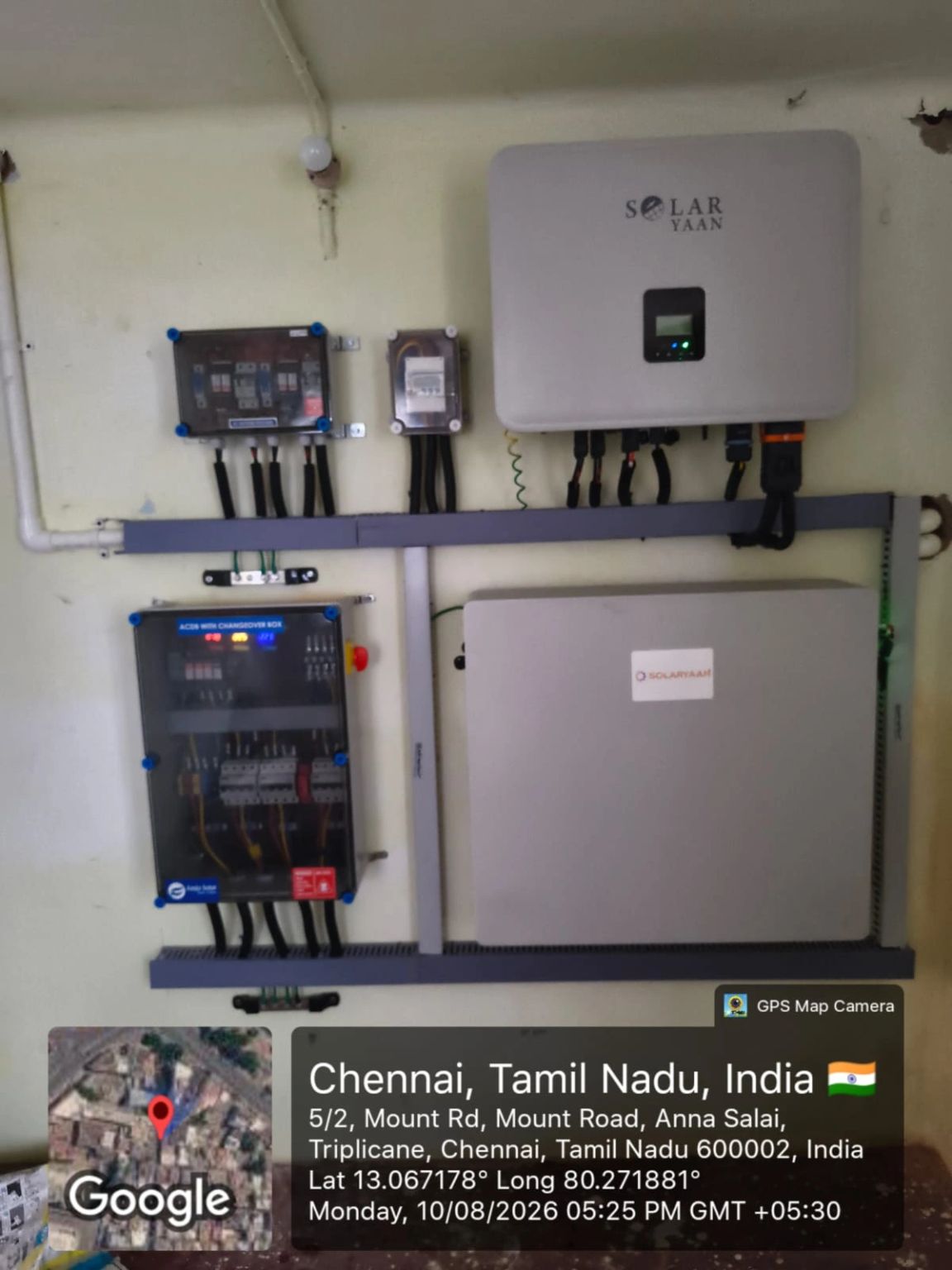

4. DCDB & ACDB with Changeover
   Complete electrical protection and isolation system, including dedicated DC MCCB for battery protection.
5. Customized Hot-Dip Galvanized Structure
   The structure was customized according to the actual site conditions and rooftop requirements to ensure a practical and robust installation.
6. Earthing – 3 Nos
   Dedicated earthing arrangements provided for electrical safety and system protection.

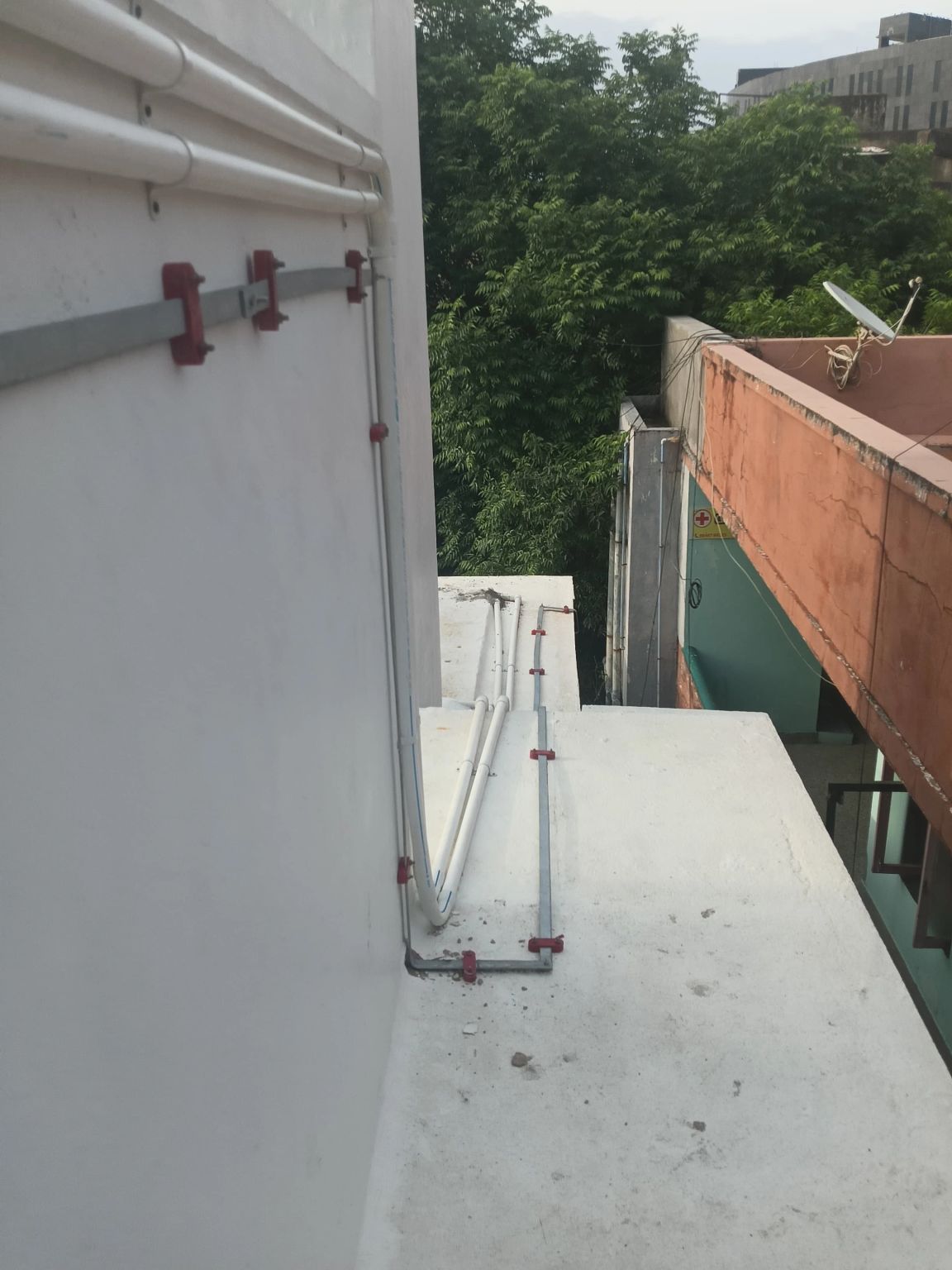

7. Polycab 6 sq.mm DC Cables – EN Type
   Used for reliable DC-side solar connections.
8. Polycab 10 sq.mm Copper FRLS Cables
   Red, Black, Blue, Yellow and Green cables used for AC power and earthing connections.
9. Stäubli MC4 Connectors
   High-quality connectors used for secure and reliable PV connections.

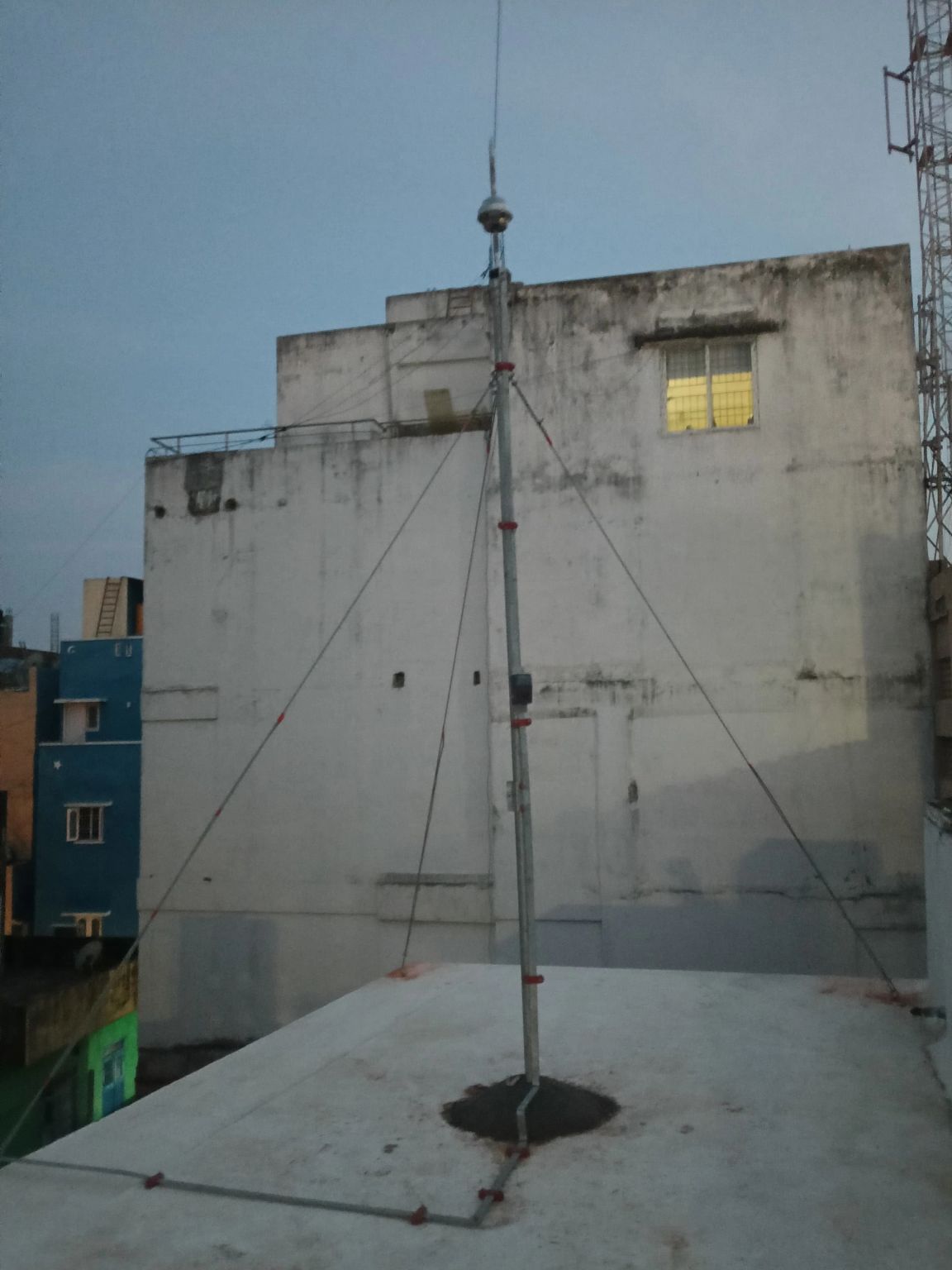

10. ESE Lightning Arrester System
    Installed with a 3-metre GI mast and 25 × 3 mm HDG strip as part of the lightning protection arrangement.

Complete EPC Scope

Transportation, installation, structural work, electrical works, protection systems and commissioning were included as part of the complete project execution.

Why Hybrid Solar + Battery?

The system is designed to help the customer:

• Maximize utilization of solar energy
• Store surplus solar generation
• Reduce dependence on grid electricity
• Provide backup power during grid interruptions
• Manage 3-phase loads more effectively
• Improve overall energy independence

At Balaji Renewable Solution Pvt Ltd, our focus is not simply on installing solar panels. We engineer site-specific renewable energy systems based on the customer’s load profile, rooftop conditions, electrical configuration and future energy requirements.

Another project successfully delivered. Another step towards smarter, cleaner and more reliable energy.
