Rooftop Redesign Success: 2.2 kW to 6.5 kW Hybrid Solar Transformation in Madambakkam, Chennai
The Challenge: A Shaded Existing Array
The customer already had an existing 2.2 kW rooftop solar system using 550 Wp PERC Bifacial modules. However, after extending the building, the newly constructed portion created significant shading on the existing array, reducing energy generation.The Engineering Solution

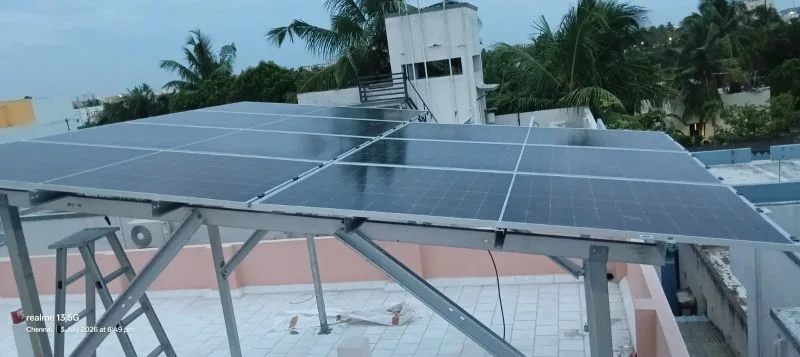

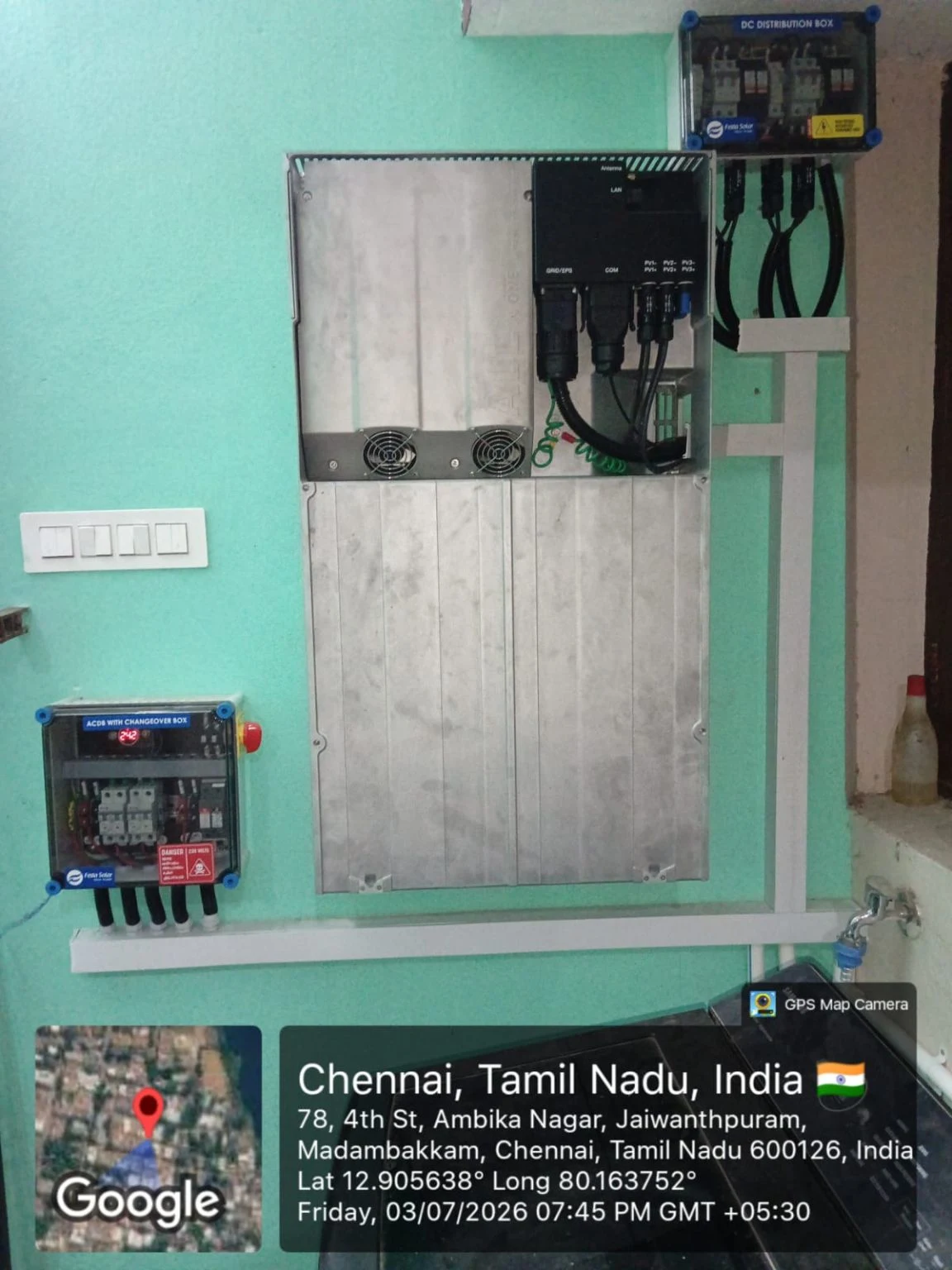

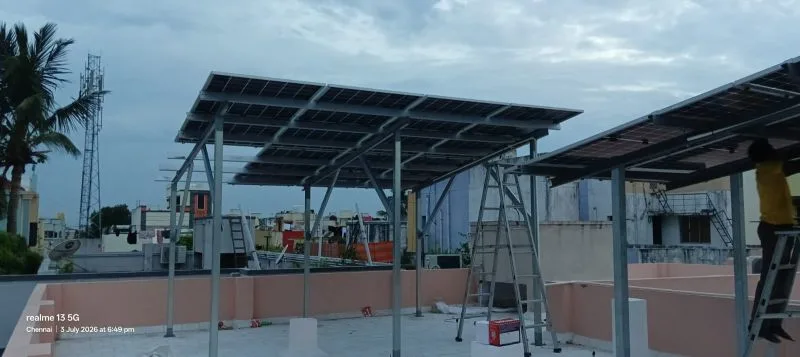

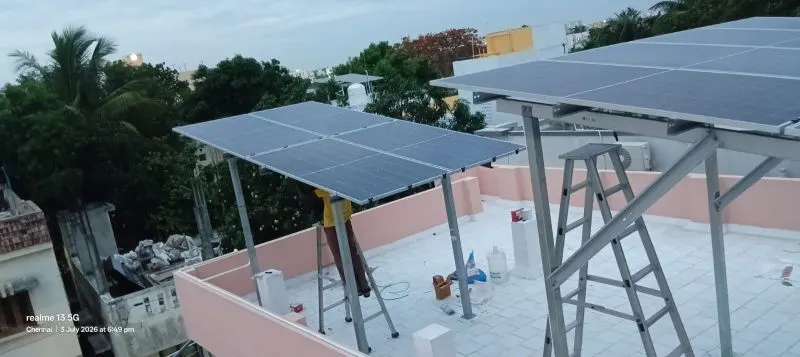

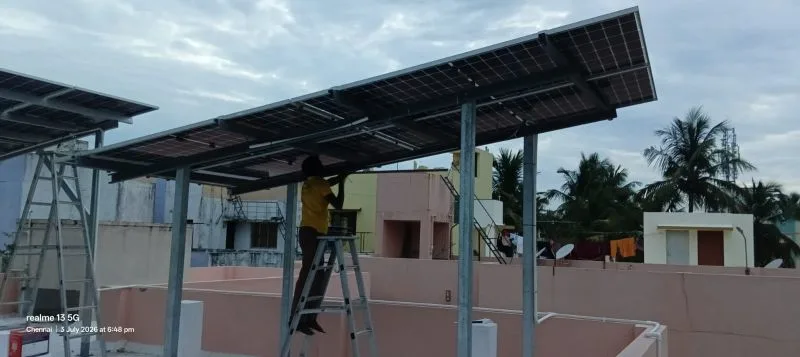

After conducting a detailed site assessment, our engineering team redesigned the complete rooftop layout. We carefully dismantled and relocated the existing 2.2 kW solar array to the newly available terrace and expanded the plant with an additional 4 kW using high-efficiency 620 Wp Vikram TopCon Bifacial modules, creating a total installed capacity of approximately 6.5 kW. To meet the customer’s increasing energy demand and provide uninterrupted power, we recommended and installed the Solaryaan All-in-One 5 kW Single-Phase Hybrid Inverter integrated with a 10 kWh High Voltage Lithium Battery. An additional challenge was that the customer’s electricity connection had been converted from a domestic tariff to a commercial tariff due to EB changes. Considering the higher electricity cost, upgrading to a hybrid solar solution became the most practical and economical choice.Project Highlights
- Total Solar Capacity: ~6.5 kW
- Solaryaan 5 kW All-in-One Hybrid Inverter
- Integrated 10 kWh High Voltage Battery
- Existing 2.2 kW array relocated to eliminate shading losses
- Added 4.3 kW Vikram 620 Wp TopCon Bifacial modules
- Smart rooftop redesign for maximum generation
The Result
- The home now operates almost entirely on solar power during the daytime.
- During the evening, the integrated battery seamlessly powers the home, significantly reducing dependence on the grid.
- Improved energy generation, optimized rooftop utilization, and enhanced energy independence.
At Balaji Renewable Solution, we believe every rooftop presents a unique engineering challenge. Instead of simply adding more panels, we design intelligent energy systems that maximize performance, reliability, and long-term savings.Customer: Nivetha Muralidharan – “Thank you for the opportunity and belief in us.” Tags: #BalajiRenewableSolution #HybridSolar #Solaryaan #SolarEnergy #BatteryStorage #EnergyStorage #TopCon #BifacialSolar #RenewableEnergy #CleanEnergy #SolarPower #Chennai #Madambakkam #EnergyIndependence #ResidentialSolar #SolarEngineering
